Setting up ScanSnap S1100i for first time use

1. Make sure the scanner is plugged in to your station. All teller line stations should have USB cables that are compatible with the scanner so the scanner can be moved from station to station if need be.

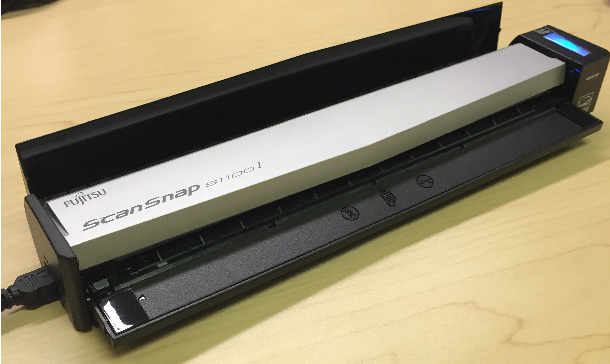

2. Ensure that the scanner's top and bottom trays are open, as showed in the picture below, and load the paper (face up and top up) into the bottom tray, between the two raised, glossy tabs. It should grab the paper.

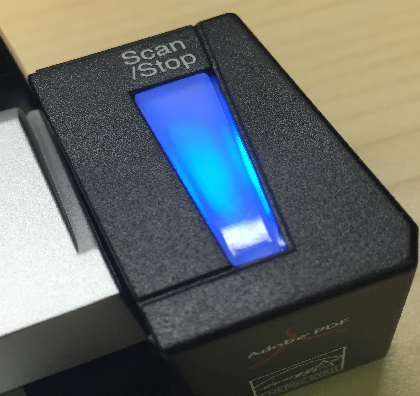

3. With the paper loaded into the device, hit scan.

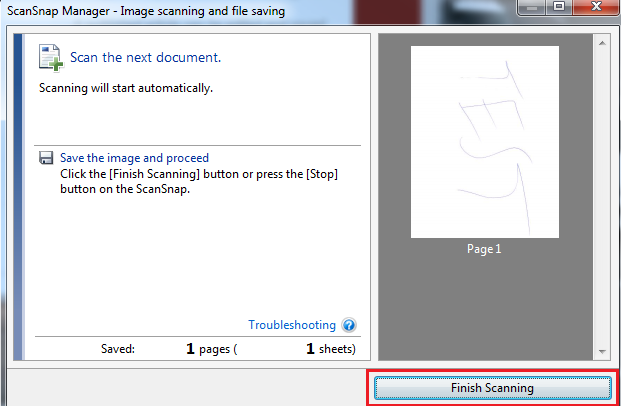

4. After pressing "Scan" on the device, this window should pop up, with the image of the scanned document on the right. Press "Finish Scanning".

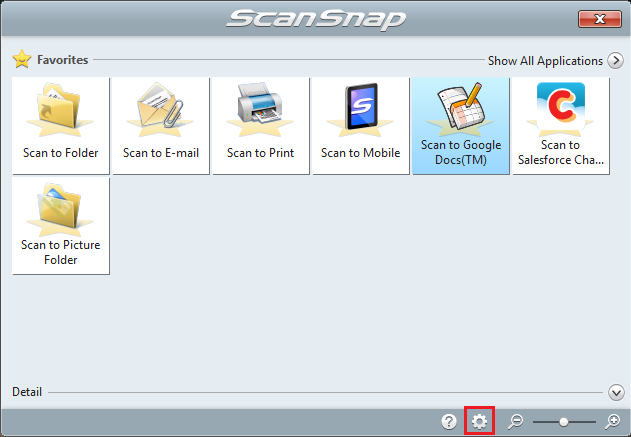

5. A new window will pop up where you select how you'd like the document to be saved. Most of these options do not apply, so click the gear at the bottom of the window to change these settings.

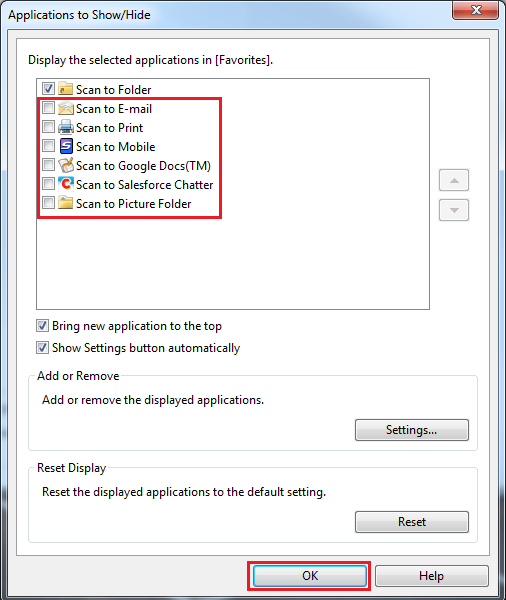

6. Now the window will pop up that's displayed below. Make sure the window that you see looks exactly like the picture below, unchecking all of the options in the red box. Once those are deselected, press "OK".

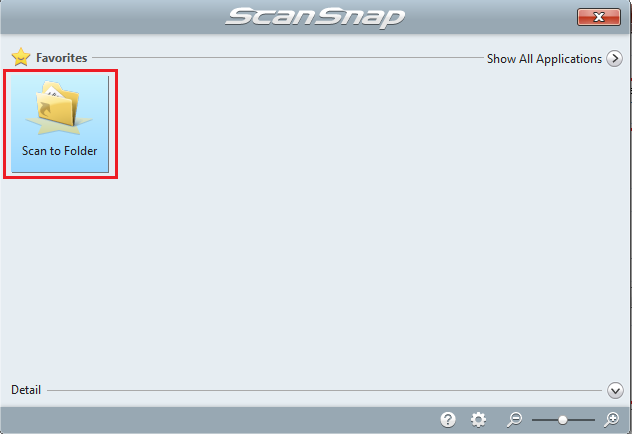

7. The new window should now look like this, press Scan to Folder.

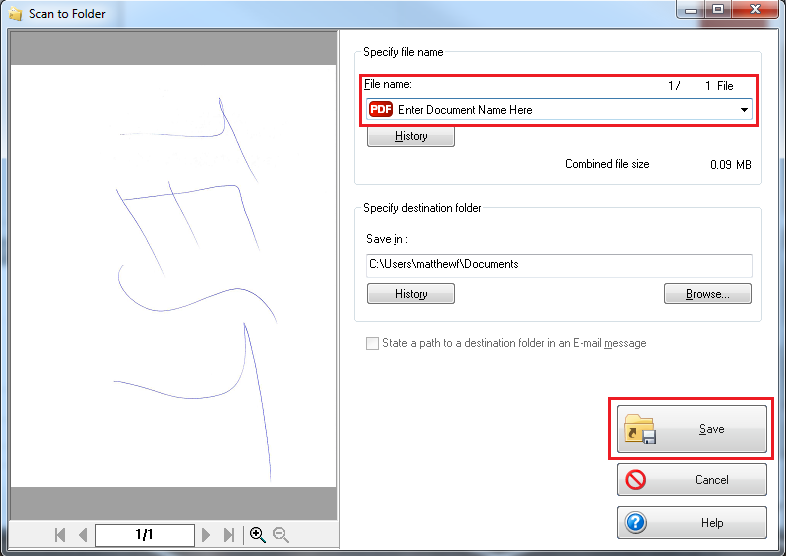

8. On the next screen, the first red box will be the name of the file once it is saved. Once you have named the file appropriately click "Save".

9. The document will now be saved in your documents folder. There is a shortcut on your desktop that looks like this:

The file will be saved there.

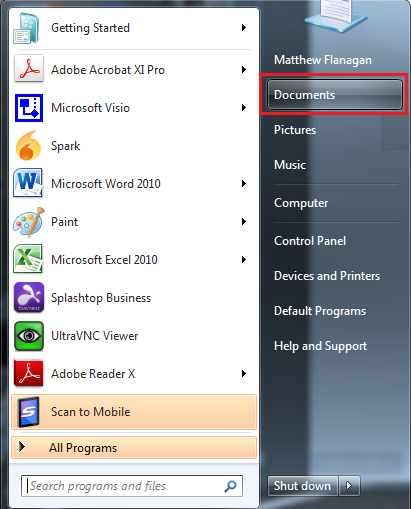

Another way to access the files is to go your documents, located in the screen below.
